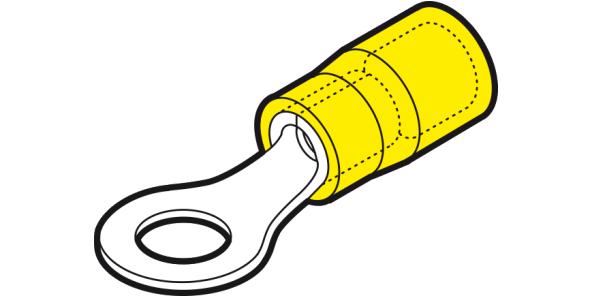

GF-M12 - PVC Insulated Ring (M12) 13mm Yellow

Cembre

Description
Datasheets

Conductor range : 4 - 6mm²
Entry diameter : 6.7mm
Stud diameter : 13mm
Ring width : 19mm
Barrel to centre stud : 15.1mm
Centre stud to ring tip : 9.5mm
Overall length : 38.8mm

Cembre PVC Insulated Terminals.pdf

Associated Products

Product Code	Description	Stock	Price (Inc. VAT) (Exc. VAT)	Pack Size
	GF-M12		PVC Insulated Ring (M12) 13mm Yellow	In Stock	£37.33 £31.11 inc VAT ex VAT	100 pieces	Add to Basket Add
	Conductor range : 4 - 6mm² Entry diameter : 6.7mm Stud diameter : 13mm Ring width : 19mm Barrel to centre stud : 15.1mm Centre stud to ring tip : 9.5mm Overall length : 38.8mm

Back to Ring F-Range Insulated Terminals
