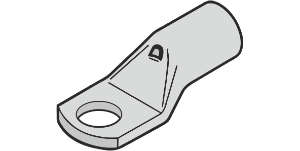

Cembre A - M Range Copper Tube Terminals

Description
Datasheets
Alternatives

Cembre "A-M" series lugs are manufactured from electrolytic copper tube
Designed for efficient conductivity and mechanical strength to resist vibration and pull out
The presence of an inspection hole facilitates full insertion of the conductor
The barrel length is designed to allow easy and accurate positioning of crimping dies
Lugs are electrolytically tinplated to avoid oxidation.
Lugs are marked with reference number, size of conductor (mm2) and stud Ø (mm)
Operating temperature range : -50 °C to 150 °C
Material : Electrolytic copper tube
Use our Cembre Die Chart - Quick Guide to find the dies and tools for your terminals.
Items not in stock are typically available within 2-4 days

Cembre A-M Series Copper Tube Crimping Lugs.pdf

Description:

Cembre A - M Narrow Palm Terminals

Price:

From £73.03 £60.86 inc VAT ex VAT

View Options

Description:

Cembre 2A - M Heavy Duty Copper Tube Terminals

Price:

From £67.99 £56.66 inc VAT ex VAT

View Options

Associated Products

Product Code	Description	Stock	Price (Inc. VAT) (Exc. VAT)	Pack Size
A03-M3	Copper Tube Terminal 1.5mm² (M3 stud)	To Order	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 0.25 - 1.5mm² Entry diameter : 1.8mm Stud diameter : 3.2mm Palm width : 6mm Palm rear to centre stud : 4.5mm Centre stud to palm tip : 3.5mm Overall length : 16mm
A03-M3.5	Copper Tube Terminal 1.5mm² (M3.5 stud)	To Order	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 0.25 - 1.5mm² Entry diameter : 1.8mm Stud diameter : 3.7mm Palm width : 6.5mm Palm rear to centre stud : 4.5mm Centre stud to palm tip : 3.5mm Overall length : 16mm
A03-M4	Copper Tube Terminal 1.5mm² (M4 stud)	In Stock	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 0.25 - 1.5mm² Entry diameter : 1.8mm Stud diameter : 4.3mm Palm width : 6.5mm Palm rear to centre stud : 5mm Centre stud to palm tip : 4mm Overall length : 17mm
A03-M5	Copper Tube Terminal 1.5mm² (M5 stud)	In Stock	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 0.25 - 1.5mm² Entry diameter : 1.8mm Stud diameter : 5.3mm Palm width : 7.5mm Palm rear to centre stud : 5.5mm Centre stud to palm tip : 4.5mm Overall length : 18mm
A03-M6	Copper Tube Terminal 1.5mm² (M6 stud)	In Stock	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 0.25 - 1.5mm² Entry diameter : 1.8mm Stud diameter : 6.4mm Palm width : 9mm Palm rear to centre stud : 6mm Centre stud to palm tip : 5mm Overall length : 19mm
A06-M3	Copper Tube Terminal 2.5mm² (M3 stud)	To Order	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 1.5 - 2.5mm² Entry diameter : 2.4mm Stud diameter : 3.2mm Palm width : 6mm Palm rear to centre stud : 4.5mm Centre stud to palm tip : 3.5mm Overall length : 17mm
A06-M3.5	Copper Tube Terminal 2.5mm² (M3.5 stud)	To Order	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 1.5 - 2.5mm² Entry diameter : 2.4mm Stud diameter : 3.7mm Palm width : 6.5mm Palm rear to centre stud : 4.5mm Centre stud to palm tip : 3.5mm Overall length : 17mm
A06-M4	Copper Tube Terminal 2.5mm² (M4 stud)	In Stock	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 1.5 - 2.5mm² Entry diameter : 2.4mm Stud diameter : 4.3mm Palm width : 7.5mm Palm rear to centre stud : 5mm Centre stud to palm tip : 4mm Overall length : 18mm
A06-M5	Copper Tube Terminal 2.5mm² (M5 stud)	In Stock	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 1.5 - 2.5mm² Entry diameter : 2.4mm Stud diameter : 5.3mm Palm width : 8.5mm Palm rear to centre stud : 5.5mm Centre stud to palm tip : 4.5mm Overall length : 19mm
A06-M6	Copper Tube Terminal 2.5mm² (M6 stud)	In Stock	£34.92 £29.10 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 1.5 - 2.5mm² Entry diameter : 2.4mm Stud diameter : 6.4mm Palm width : 9mm Palm rear to centre stud : 6mm Centre stud to palm tip : 5mm Overall length : 20mm
A06-M8	Copper Tube Terminal 2.5mm² (M8 stud)	To Order	£47.73 £39.77 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 1.5 - 2.5mm² Entry diameter : 2.4mm Stud diameter : 8.4mm Palm width : 12mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 26mm
A1-M3	Copper Tube Terminal 6mm² (M3 stud)	In Stock	£60.69 £50.57 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 4 - 6mm² Entry diameter : 3.6mm Stud diameter : 3.2mm Palm width : 7.5mm Palm rear to centre stud : 4.5mm Centre stud to palm tip : 3.5mm Overall length : 20.5mm
A1-M3.5	Copper Tube Terminal 6mm² (M3.5 stud)	To Order	£71.07 £59.23 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 4 - 6mm² Entry diameter : 3.6mm Stud diameter : 3.7mm Palm width : 7.5mm Palm rear to centre stud : 4.5mm Centre stud to palm tip : 3.5mm Overall length : 20.5mm
A1-M4	Copper Tube Terminal 6mm² (M4 stud)	In Stock	£49.58 £41.31 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 4 - 6mm² Entry diameter : 3.6mm Stud diameter : 4.3mm Palm width : 8mm Palm rear to centre stud : 5mm Centre stud to palm tip : 4mm Overall length : 21.5mm
A1-M5	Copper Tube Terminal 6mm² (M5 stud)	In Stock	£49.58 £41.31 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 4 - 6mm² Entry diameter : 3.6mm Stud diameter : 5.3mm Palm width : 9mm Palm rear to centre stud : 6.5mm Centre stud to palm tip : 6mm Overall length : 25mm
A1-M6	Copper Tube Terminal 6mm² (M6 stud)	In Stock	£49.58 £41.31 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 4 - 6mm² Entry diameter : 3.6mm Stud diameter : 6.4mm Palm width : 11mm Palm rear to centre stud : 7mm Centre stud to palm tip : 6mm Overall length : 25.5mm
A1-M8	Copper Tube Terminal 6mm² (M8 stud)	In Stock	£57.29 £47.74 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 4 - 6mm² Entry diameter : 3.6mm Stud diameter : 8.4mm Palm width : 14mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 29.5mm
A1-M10	Copper Tube Terminal 4-6mm² (M10 stud)	To Order	£61.30 £51.09 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 4 - 6mm² Entry diameter : 3.6mm Stud diameter : 10.5mm Palm width : 16.5mm Palm rear to centre stud : 11mm Centre stud to palm tip : 10mm Overall length : 33.5mm
A2-M4	Copper Tube Terminal 10mm² (M4 stud)	In Stock	£54.31 £45.26 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 10mm² Entry diameter : 4.6mm Stud diameter : 4.3mm Palm width : 10mm Palm rear to centre stud : 5mm Centre stud to palm tip : 4mm Overall length : 22.5mm
A2-M5	Copper Tube Terminal 10mm² (M5 stud)	In Stock	£51.84 £43.20 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 10mm² Entry diameter : 4.6mm Stud diameter : 5.3mm Palm width : 10mm Palm rear to centre stud : 6.5mm Centre stud to palm tip : 6mm Overall length : 26mm
A2-M6	Copper Tube Terminal 10mm² (M6 stud)	In Stock	£47.88 £39.90 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 10mm² Entry diameter : 4.6mm Stud diameter : 6.4mm Palm width : 11mm Palm rear to centre stud : 7mm Centre stud to palm tip : 6mm Overall length : 26.5mm
A2-M8	Copper Tube Terminal 10mm² (M8 stud)	In Stock	£56.16 £46.80 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 10mm² Entry diameter : 4.6mm Stud diameter : 8.4mm Palm width : 15mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 30.5mm
A2-M10	Copper Tube Terminal 10mm² (M10 stud)	In Stock	£63.57 £52.97 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 10mm² Entry diameter : 4.6mm Stud diameter : 10.5mm Palm width : 18mm Palm rear to centre stud : 11mm Centre stud to palm tip : 10mm Overall length : 34.5mm
A2-M12	Copper Tube Terminal 10mm² (M12 stud)	To Order	£80.33 £66.94 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 10mm² Entry diameter : 4.6mm Stud diameter : 13.2mm Palm width : 19mm Palm rear to centre stud : 14mm Centre stud to palm tip : 12mm Overall length : 39.5mm
A3-M4	Copper Tube Terminal 16mm² (M4 stud)	In Stock	£64.39 £53.66 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 16mm² Entry diameter : 5.8mm Stud diameter : 4.3mm Palm width : 11.5mm Palm rear to centre stud : 5mm Centre stud to palm tip : 4mm Overall length : 25.5mm
A3-M5	Copper Tube Terminal 16mm² (M5 stud)	In Stock	£64.39 £53.66 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 16mm² Entry diameter : 5.8mm Stud diameter : 5.3mm Palm width : 11.5mm Palm rear to centre stud : 6.5mm Centre stud to palm tip : 6mm Overall length : 29mm
A3-M6	Copper Tube Terminal 16mm² (M6 stud)	In Stock	£59.66 £49.71 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 16mm² Entry diameter : 5.8mm Stud diameter : 6.4mm Palm width : 11.5mm Palm rear to centre stud : 7mm Centre stud to palm tip : 6mm Overall length : 29.5mm
A3-M8	Copper Tube Terminal 16mm² (M8 stud)	In Stock	£63.67 £53.06 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 16mm² Entry diameter : 5.8mm Stud diameter : 8.4mm Palm width : 15mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 33.5mm
A3-M10	Copper Tube Terminal 16mm² (M10 stud)	In Stock	£68.30 £56.91 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 16mm² Entry diameter : 5.8mm Stud diameter : 10.5mm Palm width : 18mm Palm rear to centre stud : 11mm Centre stud to palm tip : 10mm Overall length : 37.5mm
A3-M12	Copper Tube Terminal 16mm² (M12 stud)	In Stock	£84.75 £70.63 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 16mm² Entry diameter : 5.8mm Stud diameter : 13.2mm Palm width : 20mm Palm rear to centre stud : 14mm Centre stud to palm tip : 12mm Overall length : 44mm
A5-M4	Copper Tube Terminal 25mm² (M4 stud)	To Order	£90.21 £75.17 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 25mm² Entry diameter : 7mm Stud diameter : 4.3mm Palm width : 14mm Palm rear to centre stud : 5mm Centre stud to palm tip : 4mm Overall length : 28mm
A5-M5	Copper Tube Terminal 25mm² (M5 stud)	In Stock	£90.21 £75.17 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 25mm² Entry diameter : 7mm Stud diameter : 5.3mm Palm width : 14mm Palm rear to centre stud : 6.5mm Centre stud to palm tip : 6mm Overall length : 31.5mm
A5-M6	Copper Tube Terminal 25mm² (M6 stud)	In Stock	£79.82 £66.52 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 25mm² Entry diameter : 7mm Stud diameter : 6.4mm Palm width : 14mm Palm rear to centre stud : 7mm Centre stud to palm tip : 6mm Overall length : 32mm
A5-M8	Copper Tube Terminal 25mm² (M8 stud)	In Stock	£81.98 £68.32 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 25mm² Entry diameter : 7mm Stud diameter : 8.4mm Palm width : 15mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 36mm
A5-M10	Copper Tube Terminal 25mm² (M10 stud)	In Stock	£85.78 £71.49 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 25mm² Entry diameter : 7mm Stud diameter : 10.5mm Palm width : 18mm Palm rear to centre stud : 11mm Centre stud to palm tip : 10mm Overall length : 40mm
A5-M12	Copper Tube Terminal 25mm² (M12 stud)	In Stock	£99.67 £83.06 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 25mm² Entry diameter : 7mm Stud diameter : 13.2mm Palm width : 21mm Palm rear to centre stud : 14mm Centre stud to palm tip : 12mm Overall length : 45mm
A7-M5	Copper Tube Terminal 35mm² (M5 stud)	To Order	£136.18 £113.49 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 35mm² Entry diameter : 8.9mm Stud diameter : 5.3mm Palm width : 17mm Palm rear to centre stud : 6.5mm Centre stud to palm tip : 6mm Overall length : 34mm
A7-M6	Copper Tube Terminal 35mm² (M6 stud)	In Stock	£125.79 £104.83 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 35mm² Entry diameter : 8.9mm Stud diameter : 6.4mm Palm width : 17mm Palm rear to centre stud : 7mm Centre stud to palm tip : 6mm Overall length : 34.5mm
A7-M8	Copper Tube Terminal 35mm² (M8 stud)	In Stock	£128.47 £107.06 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 35mm² Entry diameter : 8.9mm Stud diameter : 8.4mm Palm width : 17mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 38.5mm
A7-M10	Copper Tube Terminal 35mm² (M10 stud)	In Stock	£135.87 £113.23 inc VAT ex VAT	100 pieces	Add to Basket Add
Conductor range : 35mm² Entry diameter : 8.9mm Stud diameter : 10.5mm Palm width : 19mm Palm rear to centre stud : 11mm Centre stud to palm tip : 10mm Overall length : 42.5mm
A7-M12	Copper Tube Terminal 35mm² (M12 stud)	In Stock	£77.35 £64.46 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 35mm² Entry diameter : 8.9mm Stud diameter : 13.2mm Palm width : 21mm Palm rear to centre stud : 14mm Centre stud to palm tip : 12mm Overall length : 47.5mm
A10-M6	Copper Tube Terminal 50mm² (M6 stud)	In Stock	£86.35 £71.96 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 50mm² Entry diameter : 10mm Stud diameter : 6.4mm Palm width : 19mm Palm rear to centre stud : 8mm Centre stud to palm tip : 7mm Overall length : 38.5mm
A10-M8	Copper Tube Terminal 50mm² (M8 stud)	In Stock	£86.35 £71.96 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 50mm² Entry diameter : 10mm Stud diameter : 8.4mm Palm width : 19mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 40.5mm
A10-M10	Copper Tube Terminal 50mm² (M10 stud)	In Stock	£87.68 £73.07 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 50mm² Entry diameter : 10mm Stud diameter : 10.5mm Palm width : 21mm Palm rear to centre stud : 11.5mm Centre stud to palm tip : 9.5mm Overall length : 44.5mm
A10-M12	Copper Tube Terminal 50mm² (M12 stud)	In Stock	£101.47 £84.56 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 50mm² Entry diameter : 10mm Stud diameter : 13.2mm Palm width : 21mm Palm rear to centre stud : 12mm Centre stud to palm tip : 12mm Overall length : 47.5mm
A10-M14	Copper Tube Terminal 50mm² (M14 stud)	To Order	£108.00 £90.00 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 50mm² Entry diameter : 10mm Stud diameter : 15mm Palm width : 25mm Palm rear to centre stud : 16mm Centre stud to palm tip : 14mm Overall length : 55.5mm
A10-M16	Copper Tube Terminal 50mm² (M16 stud)	To Order	£111.08 £92.57 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 50mm² Entry diameter : 10mm Stud diameter : 17mm Palm width : 26mm Palm rear to centre stud : 18mm Centre stud to palm tip : 16mm Overall length : 59.5mm
A14-M6	Copper Tube Terminal 70mm² (M6 stud)	In Stock	£118.80 £99.00 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 70mm² Entry diameter : 11.3mm Stud diameter : 6.4mm Palm width : 21mm Palm rear to centre stud : 8mm Centre stud to palm tip : 7mm Overall length : 44mm
A14-M8	Copper Tube Terminal 70mm² (M8 stud)	In Stock	£114.17 £95.14 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 70mm² Entry diameter : 11.3mm Stud diameter : 8.4mm Palm width : 21mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 46mm
A14-M10	Copper Tube Terminal 70mm² (M10 stud)	In Stock	£124.97 £104.15 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 70mm² Entry diameter : 11.3mm Stud diameter : 10.5mm Palm width : 21mm Palm rear to centre stud : 11mm Centre stud to palm tip : 10mm Overall length : 50mm
A14-M12	Copper Tube Terminal 70mm² (M12 stud)	In Stock	£133.72 £111.43 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 70mm² Entry diameter : 11.3mm Stud diameter : 13.2mm Palm width : 22mm Palm rear to centre stud : 14mm Centre stud to palm tip : 12mm Overall length : 55mm
A14-M14	Copper Tube Terminal 70mm² (M14 stud)	To Order	£146.06 £121.72 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 70mm² Entry diameter : 11.3mm Stud diameter : 15mm Palm width : 25mm Palm rear to centre stud : 16mm Centre stud to palm tip : 14mm Overall length : 59mm
A14-M16	Copper Tube Terminal 70mm² (M16 stud)	To Order	£146.57 £122.15 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 70mm² Entry diameter : 11.3mm Stud diameter : 17mm Palm width : 26mm Palm rear to centre stud : 18mm Centre stud to palm tip : 16mm Overall length : 63mm
A17-M12	Copper Tube Terminal 70mm² (M12 stud)	In Stock	£135.26 £112.72 inc VAT ex VAT	50 pieces	Add to Basket Add
Conductor range : 70mm² Entry diameter : 13mm Stud diameter : 13.2mm Palm width : 23mm Palm rear to centre stud : 14mm Centre stud to palm tip : 12mm Overall length : 56mm
A19-M6	Copper Tube Terminal 95mm² (M6 stud)	In Stock	£91.80 £76.50 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 95mm² Entry diameter : 13.5mm Stud diameter : 6.4mm Palm width : 25mm Palm rear to centre stud : 8mm Centre stud to palm tip : 7mm Overall length : 50.5mm
A19-M8	Copper Tube Terminal 95mm² (M8 stud)	In Stock	£91.80 £76.50 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 95mm² Entry diameter : 13.5mm Stud diameter : 8.4mm Palm width : 25mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 52.5mm
A19-M10	Copper Tube Terminal 95mm² (M10 stud)	In Stock	£91.80 £76.50 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 95mm² Entry diameter : 13.5mm Stud diameter : 10.5mm Palm width : 25mm Palm rear to centre stud : 11mm Centre stud to palm tip : 10mm Overall length : 56.5mm
A19-M12	Copper Tube Terminal 95mm² (M12 stud)	In Stock	£91.80 £76.50 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 95mm² Entry diameter : 13.5mm Stud diameter : 13.2mm Palm width : 25mm Palm rear to centre stud : 14mm Centre stud to palm tip : 12mm Overall length : 61.5mm
A19-M14	Copper Tube Terminal 95mm² (M14 stud)	To Order	£109.03 £90.86 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 95mm² Entry diameter : 13.5mm Stud diameter : 15mm Palm width : 25mm Palm rear to centre stud : 16mm Centre stud to palm tip : 14mm Overall length : 65.5mm
A19-M16	Copper Tube Terminal 95mm² (M16 stud)	To Order	£113.14 £94.29 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 95mm² Entry diameter : 13.5mm Stud diameter : 17mm Palm width : 27mm Palm rear to centre stud : 18mm Centre stud to palm tip : 16mm Overall length : 69.5mm
A19-M20	Copper Tube Terminal 95mm² (M20 stud)	To Order	£122.14 £101.79 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 95mm² Entry diameter : 13.5mm Stud diameter : 21mm Palm width : 29.5mm Palm rear to centre stud : 22mm Centre stud to palm tip : 20mm Overall length : 77.5mm
A24-M8	Copper Tube Terminal 120mm² (M8 stud)	In Stock	£117.51 £97.93 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 120mm² Entry diameter : 15.2mm Stud diameter : 8.4mm Palm width : 28.5mm Palm rear to centre stud : 9mm Centre stud to palm tip : 8mm Overall length : 54mm
A24-M10	Copper Tube Terminal 120mm² (M10 stud)	In Stock	£117.51 £97.93 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 120mm² Entry diameter : 15.2mm Stud diameter : 10.5mm Palm width : 28.5mm Palm rear to centre stud : 11mm Centre stud to palm tip : 10mm Overall length : 58mm
A24-M12	Copper Tube Terminal 120mm² (M12 stud)	In Stock	£117.51 £97.93 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 120mm² Entry diameter : 15.2mm Stud diameter : 13.2mm Palm width : 28.5mm Palm rear to centre stud : 14mm Centre stud to palm tip : 12mm Overall length : 63mm
A24-M14	Copper Tube Terminal 120mm² (M14 stud)	To Order	£140.14 £116.79 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 120mm² Entry diameter : 15.2mm Stud diameter : 15mm Palm width : 28.5mm Palm rear to centre stud : 16mm Centre stud to palm tip : 14mm Overall length : 67mm
A24-M16	Copper Tube Terminal 120mm² (M16 stud)	To Order	£142.97 £119.14 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 120mm² Entry diameter : 15.2mm Stud diameter : 17mm Palm width : 28.5mm Palm rear to centre stud : 18mm Centre stud to palm tip : 16mm Overall length : 71mm
A24-M20	Copper Tube Terminal 120mm² (M20 stud)	To Order	£170.23 £141.86 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 120mm² Entry diameter : 15.2mm Stud diameter : 21mm Palm width : 30mm Palm rear to centre stud : 22mm Centre stud to palm tip : 20mm Overall length : 79mm
A30-M8	Copper Tube Terminal 150mm² (M8 stud)	In Stock	£179.49 £149.57 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 150mm² Entry diameter : 16.7mm Stud diameter : 8.4mm Palm width : 31.5mm Palm rear to centre stud : 13mm Centre stud to palm tip : 11mm Overall length : 69mm
A30-M10	Copper Tube Terminal 150mm² (M10 stud)	In Stock	£179.49 £149.57 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 150mm² Entry diameter : 16.7mm Stud diameter : 10.5mm Palm width : 31.5mm Palm rear to centre stud : 13mm Centre stud to palm tip : 11mm Overall length : 69mm
A30-M12	Copper Tube Terminal 150mm² (M12 stud)	In Stock	£170.23 £141.86 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 150mm² Entry diameter : 16.7mm Stud diameter : 13.2mm Palm width : 31.5mm Palm rear to centre stud : 16mm Centre stud to palm tip : 14mm Overall length : 75mm
A30-M14	Copper Tube Terminal 150mm² (M14 stud)	To Order	£201.34 £167.79 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 150mm² Entry diameter : 16.7mm Stud diameter : 15mm Palm width : 31.5mm Palm rear to centre stud : 18mm Centre stud to palm tip : 16mm Overall length : 79mm
A30-M16	Copper Tube Terminal 150mm² (M16 stud)	To Order	£208.03 £173.36 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 150mm² Entry diameter : 16.7mm Stud diameter : 17mm Palm width : 31.5mm Palm rear to centre stud : 19mm Centre stud to palm tip : 17mm Overall length : 81mm
A30-M20	Copper Tube Terminal 150mm² (M20 stud)	To Order	£222.17 £185.14 inc VAT ex VAT	25 pieces	Add to Basket Add
Conductor range : 150mm² Entry diameter : 16.7mm Stud diameter : 21mm Palm width : 31.5mm Palm rear to centre stud : 22mm Centre stud to palm tip : 20mm Overall length : 87mm
A37-M8	Copper Tube Terminal 185mm² (M8 stud)	In Stock	£147.50 £122.91 inc VAT ex VAT	15 pieces	Add to Basket Add
Conductor range : 185mm² Entry diameter : 19.2mm Stud diameter : 8.4mm Palm width : 35.5mm Palm rear to centre stud : 13mm Centre stud to palm tip : 11mm Overall length : 76mm
A37-M10	Copper Tube Terminal 185mm² (M10 stud)	In Stock	£147.50 £122.91 inc VAT ex VAT	15 pieces	Add to Basket Add
Conductor range : 185mm² Entry diameter : 19.2mm Stud diameter : 10.5mm Palm width : 35.5mm Palm rear to centre stud : 13mm Centre stud to palm tip : 11mm Overall length : 76mm
A37-M12	Copper Tube Terminal 185mm² (M12 stud)	In Stock	£147.50 £122.91 inc VAT ex VAT	15 pieces	Add to Basket Add
Conductor range : 185mm² Entry diameter : 19.2mm Stud diameter : 13.2mm Palm width : 35.5mm Palm rear to centre stud : 16mm Centre stud to palm tip : 14mm Overall length : 82mm
A37-M14	Copper Tube Terminal 185mm² (M14 stud)	To Order	£161.23 £134.36 inc VAT ex VAT	15 pieces	Add to Basket Add
Conductor range : 185mm² Entry diameter : 19.2mm Stud diameter : 15mm Palm width : 35.5mm Palm rear to centre stud : 18mm Centre stud to palm tip : 16mm Overall length : 86mm
A37-M16	Copper Tube Terminal 185mm² (M16 stud)	To Order	£164.31 £136.93 inc VAT ex VAT	15 pieces	Add to Basket Add
Conductor range : 185mm² Entry diameter : 19.2mm Stud diameter : 17mm Palm width : 35.5mm Palm rear to centre stud : 19mm Centre stud to palm tip : 17mm Overall length : 88mm
A37-M20	Copper Tube Terminal 185mm² (M20 stud)	To Order	£172.80 £144.00 inc VAT ex VAT	15 pieces	Add to Basket Add
Conductor range : 185mm² Entry diameter : 19.2mm Stud diameter : 21mm Palm width : 35.5mm Palm rear to centre stud : 22mm Centre stud to palm tip : 20mm Overall length : 94mm
A48-M8	Copper Tube Terminal 240mm² (M8 stud)	To Order	£215.23 £179.36 inc VAT ex VAT	15 pieces	Add to Basket Add
Conductor range : 240mm² Entry diameter : 21.1mm Stud diameter : 8.4mm Palm width : 39mm Palm rear to centre stud : 13mm Centre stud to palm tip : 11mm Overall length : 77.5mm
A48-M10	Copper Tube Terminal 240mm² (M10 stud)	In Stock	£143.49 £119.57 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 240mm² Entry diameter : 21.1mm Stud diameter : 10.5mm Palm width : 39mm Palm rear to centre stud : 13mm Centre stud to palm tip : 11mm Overall length : 77.5mm
A48-M12	Copper Tube Terminal 240mm² (M12 stud)	In Stock	£133.83 £111.53 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 240mm² Entry diameter : 21.1mm Stud diameter : 13.2mm Palm width : 39mm Palm rear to centre stud : 14mm Centre stud to palm tip : 12mm Overall length : 79.5mm
A48-M14	Copper Tube Terminal 240mm² (M14 stud)	To Order	£150.69 £125.57 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 240mm² Entry diameter : 21.1mm Stud diameter : 15mm Palm width : 39mm Palm rear to centre stud : 18mm Centre stud to palm tip : 16mm Overall length : 92mm
A48-M16	Copper Tube Terminal 240mm² (M16 stud)	In Stock	£154.80 £129.00 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 240mm² Entry diameter : 21.1mm Stud diameter : 17mm Palm width : 39mm Palm rear to centre stud : 19mm Centre stud to palm tip : 17mm Overall length : 94mm
A48-M20	Copper Tube Terminal 240mm² (M20 stud)	To Order	£154.80 £129.00 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 240mm² Entry diameter : 21.1mm Stud diameter : 21mm Palm width : 39mm Palm rear to centre stud : 22mm Centre stud to palm tip : 20mm Overall length : 100mm
A60-M10	Copper Tube Terminal 300mm² (M10 stud)	In Stock	£209.31 £174.43 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 300mm² Entry diameter : 23.7mm Stud diameter : 10.5mm Palm width : 44mm Palm rear to centre stud : 20mm Centre stud to palm tip : 11mm Overall length : 96mm
A60-M12	Copper Tube Terminal 300mm² (M12 stud)	In Stock	£208.29 £173.57 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 300mm² Entry diameter : 23.7mm Stud diameter : 13.2mm Palm width : 44mm Palm rear to centre stud : 20mm Centre stud to palm tip : 14mm Overall length : 99mm
A60-M14	Copper Tube Terminal 300mm² (M14 stud)	To Order	£224.23 £186.86 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 300mm² Entry diameter : 23.7mm Stud diameter : 15mm Palm width : 44mm Palm rear to centre stud : 22mm Centre stud to palm tip : 16mm Overall length : 103mm
A60-M16	Copper Tube Terminal 300mm² (M16 stud)	To Order	£224.23 £186.86 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 300mm² Entry diameter : 23.7mm Stud diameter : 17mm Palm width : 44mm Palm rear to centre stud : 22mm Centre stud to palm tip : 19mm Overall length : 106mm
A60-M20	Copper Tube Terminal 300mm² (M20 stud)	To Order	£238.63 £198.86 inc VAT ex VAT	10 pieces	Add to Basket Add
Conductor range : 300mm² Entry diameter : 23.7mm Stud diameter : 21mm Palm width : 44mm Palm rear to centre stud : 24mm Centre stud to palm tip : 23mm Overall length : 112mm
A80-M12	Copper Tube Terminal 400mm² (M12 stud)	To Order	£158.92 £132.43 inc VAT ex VAT	5 pieces	Add to Basket Add
Conductor range : 400mm² Entry diameter : 27mm Stud diameter : 13.2mm Palm width : 51mm Palm rear to centre stud : 22mm Centre stud to palm tip : 19mm Overall length : 113mm
A80-M14	Copper Tube Terminal 400mm² (M14 stud)	To Order	£158.92 £132.43 inc VAT ex VAT	5 pieces	Add to Basket Add
Conductor range : 400mm² Entry diameter : 27mm Stud diameter : 15mm Palm width : 51mm Palm rear to centre stud : 22mm Centre stud to palm tip : 19mm Overall length : 113mm
A80-M16	Copper Tube Terminal 400mm² (M16 stud)	To Order	£158.92 £132.43 inc VAT ex VAT	5 pieces	Add to Basket Add
Conductor range : 400mm² Entry diameter : 27mm Stud diameter : 17mm Palm width : 51mm Palm rear to centre stud : 22mm Centre stud to palm tip : 19mm Overall length : 113mm
A80-M20	Copper Tube Terminal 400mm² (M20 stud)	To Order	£166.12 £138.43 inc VAT ex VAT	5 pieces	Add to Basket Add
Conductor range : 400mm² Entry diameter : 27mm Stud diameter : 21mm Palm width : 51mm Palm rear to centre stud : 24mm Centre stud to palm tip : 23mm Overall length : 119mm
A100-M16	Copper Tube Terminal 500mm² (M16 stud)	To Order	£43.25 £36.04 inc VAT ex VAT	EACH	Add to Basket Add
Conductor range : 500mm² Entry diameter : 30.3mm Stud diameter : 17mm Palm width : 56.5mm Palm rear to centre stud : 22mm Centre stud to palm tip : 19mm Overall length : 117mm
A100-M20	Copper Tube Terminal 500mm² (M20 stud)	To Order	£45.25 £37.71 inc VAT ex VAT	EACH	Add to Basket Add
Conductor range : 500mm² Entry diameter : 30.3mm Stud diameter : 21mm Palm width : 56.5mm Palm rear to centre stud : 24mm Centre stud to palm tip : 23mm Overall length : 123mm
A120-M12	Copper Tube Terminal 630mm² (M12 stud)	In Stock	£51.73 £43.11 inc VAT ex VAT	EACH	Add to Basket Add
Conductor range : 630mm² Entry diameter : 33.4mm Stud diameter : 13.2mm Palm width : 61.6mm Palm rear to centre stud : 23mm Centre stud to palm tip : 21mm Overall length : 128mm
A120-M16	Copper Tube Terminal 630mm² (M16 stud)	To Order	£51.73 £43.11 inc VAT ex VAT	EACH	Add to Basket Add
Conductor range : 630mm² Entry diameter : 33.4mm Stud diameter : 17mm Palm width : 61.6mm Palm rear to centre stud : 22mm Centre stud to palm tip : 19mm Overall length : 128mm
A120-M20	Copper Tube Terminal 630mm² (M16 stud)	To Order	£54.72 £45.60 inc VAT ex VAT	EACH	Add to Basket Add
Conductor range : 630mm² Entry diameter : 33.4mm Stud diameter : 21mm Palm width : 61.6mm Palm rear to centre stud : 24mm Centre stud to palm tip : 23mm Overall length : 134mm
A160-M16	Copper Tube Terminal 800mm² (M16 stud)	To Order	£102.24 £85.20 inc VAT ex VAT	EACH	Add to Basket Add
Conductor range : 800mm² Entry diameter : 38mm Stud diameter : 17mm Palm width : 72mm Palm rear to centre stud : 24mm Centre stud to palm tip : 19mm Overall length : 141mm
A160-M20	Copper Tube Terminal 800mm² (M20 stud)	To Order	£103.68 £86.40 inc VAT ex VAT	EACH	Add to Basket Add
Conductor range : 800mm² Entry diameter : 38mm Stud diameter : 21mm Palm width : 72mm Palm rear to centre stud : 24mm Centre stud to palm tip : 23mm Overall length : 145mm
A200-M16	Copper Tube Terminal 1000mm² (M16 stud)	To Order	£131.24 £109.37 inc VAT ex VAT	EACH	Add to Basket Add
Conductor range : 1000mm² Entry diameter : 44mm Stud diameter : 17mm Palm width : 80mm Palm rear to centre stud : 24mm Centre stud to palm tip : 19mm Overall length : 158mm
A200-M20	Copper Tube Terminal 1000mm² (M20 stud)	To Order	£131.24 £109.37 inc VAT ex VAT	EACH	Add to Basket Add
Conductor range : 1000mm² Entry diameter : 44mm Stud diameter : 21mm Palm width : 80mm Palm rear to centre stud : 24mm Centre stud to palm tip : 23mm Overall length : 162mm

Cembre A - M Range Copper Tube Terminals

Associated Products

Contact & Support

Order Information

Document Downloads

Let's Connect
